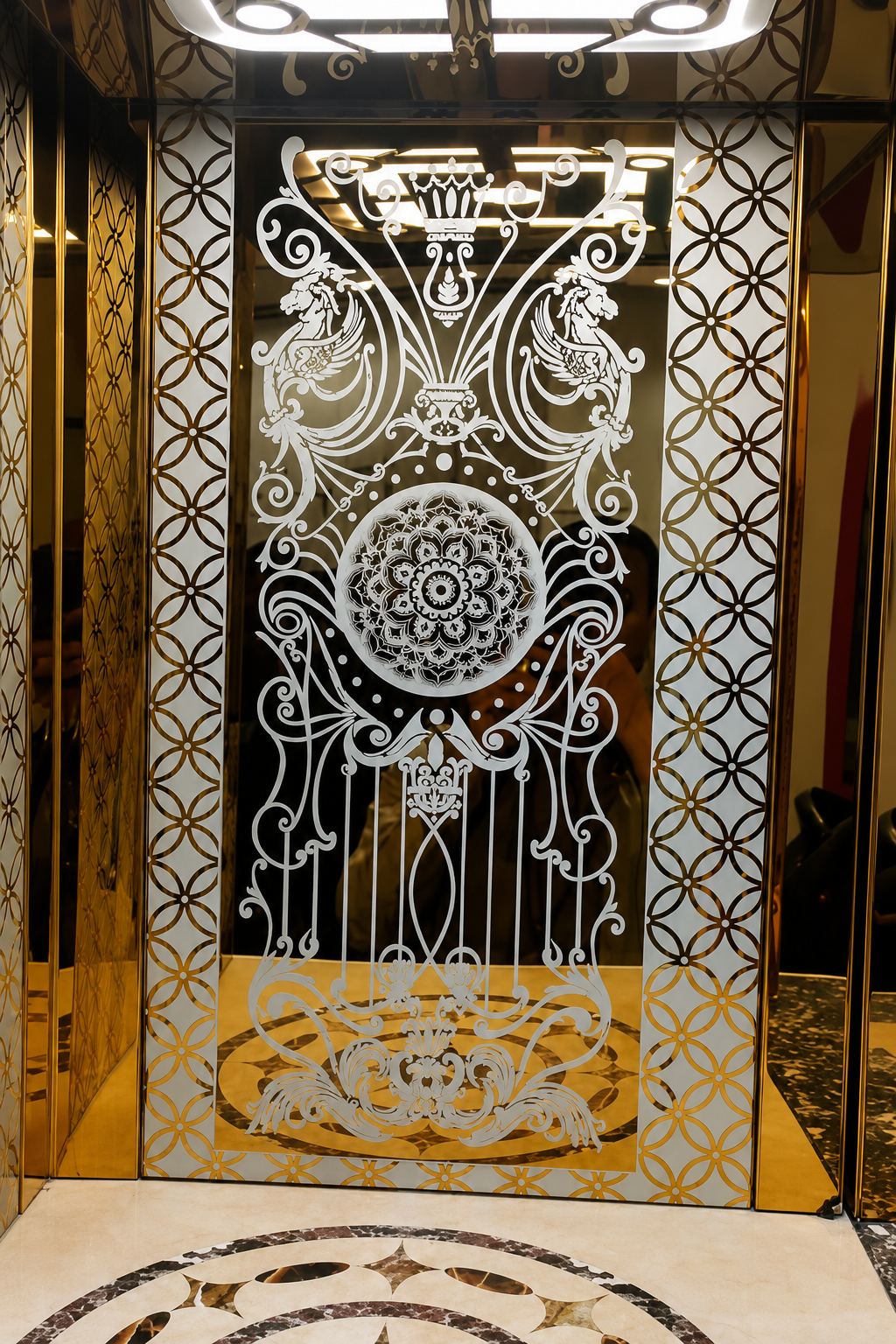

Passenger Lift

A Passenger Lift provides convenient vertical movement for people in residential, commercial, institutional and other buildings where regular movement between floors is required. The right lift depends on factors such as the number of floors, expected passenger traffic, available space, travel distance and intended use. Unique Elevators Lifts (P) Ltd. supplies Passenger Lifts in Delhi and nearby areas, along with maintenance, repair and AMC services.

Passenger Lifts are designed primarily to carry people between different floors of a building. Unlike a home lift, which is generally intended for residential use, a passenger lift can be planned for properties where a higher level of regular passenger movement is expected.

For example, a lift in an apartment building may be used by residents throughout the day, while one in an office may experience heavier movement during working hours. These differences should be considered when deciding the capacity, speed, cabin size and other requirements.

Applications

Residential buildings and apartment complexes

Commercial buildings and offices

Hotels and hospitality properties

Shopping and retail buildings

Educational and institutional buildings

Public and other buildings requiring passenger transportation

Technical Details

Specification	Reference Details
Lift Type	Passenger Lift
Application	Passenger transportation
Common Rated Load	272 kg to 1,020 kg for common passenger-load ratings
Common Passenger Capacity	4 to 15 persons for the corresponding rated-load examples
Typical Speed	0.63 m/s to 1.75 m/s, depending on lift configuration
Drive System	Generally traction-based for conventional passenger lifts
Door Type	Manual or automatic, depending on configuration
Common Door Widths	700 mm to 900 mm, depending on cabin and lift configuration
Power Supply	3-phase supply for commonly used lift systems; exact requirement depends on equipment
Cabin Size	Selected according to rated load, passenger capacity and available space
Number of Stops	Based on building layout and travel requirements
Installation	Planned according to building layout, site conditions and applicable requirements

The numerical figures above are reference values for commonly available passenger-lift configurations. They are not fixed specifications for every Passenger Lift supplied by Unique Elevators Lifts. The final capacity, speed, cabin dimensions, door opening, number of stops and electrical requirements should be confirmed according to the selected lift configuration and approved site requirements.

Choosing the Right Passenger Lift

Choosing a passenger lift involves more than deciding how many people the cabin should carry. The lift should match the building's actual usage.

Consider the following before selecting a passenger lift:

Building Type: Apartments, offices, hotels and institutions can have different passenger movement patterns.

Passenger Traffic: Estimate how many people are likely to use the lift and how frequently it will operate.

Number of Floors: The building height and travel distance can influence the appropriate lift speed and configuration.

Capacity: Select the rated load according to expected passenger usage rather than choosing a capacity without considering the building.

Available Space: Shaft dimensions, pit, overhead and equipment requirements should be considered during planning.

Cabin Size: The cabin should provide sufficient space for the intended number of passengers and the building's accessibility requirements.

Door Arrangement: Entrance width and door arrangement should suit the building and expected users.

Maintenance: Regular maintenance should be planned to support continued and dependable lift operation.

For example, a passenger lift serving a small apartment building may have different requirements from one serving a busy office where people arrive and leave at similar times every working day. Looking at actual usage helps create a more suitable lift requirement.

Passenger Lift Comparison

Unique Elevators Lifts offers six lift categories for different applications. The table below highlights the main differences between them.

Feature	Hydraulic Passenger Lift	Glass Home Lift	Passenger Lift	Hospital Lift	Goods Cum Passenger Lift	MACHINE ROOMLESS ELEVATOR
Primary Purpose	Passenger movement	Residential passenger movement	Passenger movement	Patient, attendant and staff movement	Goods and passenger movement	Passenger movement
Typical Application	Suitable residential and low-rise applications	Homes and villas	Residential, commercial and institutional buildings	Hospitals and healthcare facilities	Buildings requiring combined goods and passenger movement	Residential, commercial and institutional buildings
Common Capacity Range	272 kg to 1,020 kg for common passenger ratings	250 kg to 400 kg in commonly published home-lift configurations	272 kg to 1,020 kg for common passenger ratings	1,020 kg, 1,360 kg and 1,768 kg are common reference configurations	Varies according to goods and passenger requirements	Varies according to passenger requirements
Typical Speed Range	0.30 m/s to 1.00 m/s	Around 0.15 m/s to 0.40 m/s for common home-lift systems	Around 0.63 m/s to 1.75 m/s for common configurations	Varies according to hospital and building requirements	Around 0.50 m/s to 1.00 m/s in common configurations	Around 0.63 m/s to 1.75 m/s in common configurations
Drive System	Hydraulic	Depends on selected home-lift system	Generally traction	Depends on selected system	Depends on selected system	Generally traction
Machine Room	Depends on hydraulic arrangement	Depends on selected design	Depends on selected system	Depends on selected system	Depends on selected system	Separate conventional machine room generally not required
Goods Movement	No	No	No	Not the primary purpose	Yes	No
Main Selection Factors	Building height, capacity, space and usage	Home layout, space, capacity and design	Passenger traffic, capacity, height and space	Patient movement, cabin size and facility layout	Goods load, passenger use and cabin requirements	Building use, available space, capacity and configuration
Best Considered For	Suitable hydraulic passenger applications	Private residential use	Regular passenger transportation	Healthcare facilities	Combined goods and passenger requirements	Buildings where an MRL arrangement is suitable

The values shown in this comparison are general reference figures, not guaranteed specifications of Unique Elevators Lifts. Actual lift capacity, speed, dimensions, drive arrangement and other technical details depend on the selected system and the requirements of the building.

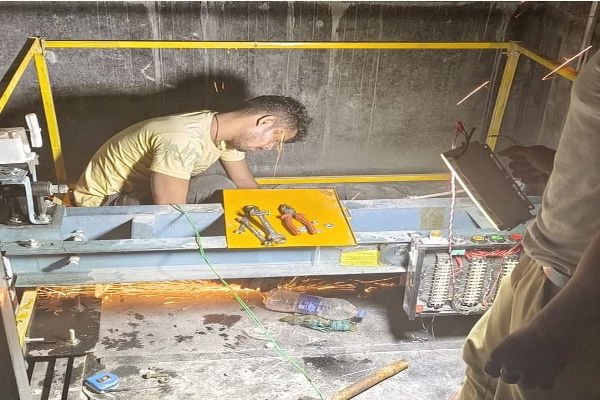

Elevator Safety Precautions

Essential Safety Guidelines

Regular Maintenance: Follow the recommended maintenance schedule and have the lift checked by qualified service personnel.

Capacity Limits: Do not exceed the rated load or passenger capacity displayed inside the lift.

Door Safety: Do not force the doors open or closed or interfere with their normal operation.

Emergency Communication: Know how to use the emergency alarm or communication facility provided in the lift.

Children's Safety: Young children should be supervised while using the lift.

Professional Service: Installation, inspection and maintenance should be handled by appropriately qualified personnel in accordance with applicable requirements.

Emergency Situations

Power Failure: If the lift stops during a power interruption, remain calm and use the available emergency communication or alarm facility.

Fire: During a fire or building evacuation, use the designated stairs or emergency route unless the lift is specifically designed and authorised for fire-service operation.

Entrapment: If the lift stops with passengers inside, remain calm, use the emergency communication or alarm facility and wait for trained assistance.

Emergency Assistance: Follow the building's emergency procedures and contact the responsible service personnel when required.

Looking for a Passenger Lift for Your Building?

The right Passenger Lift depends on your building type, number of floors, expected passenger movement, available space and intended usage. Discussing these requirements before selection can help determine a suitable lift configuration.

Unique Elevators Lifts (P) Ltd. supplies Passenger Lifts for residential, commercial and institutional requirements in Delhi and nearby areas.
